Chojambula Chophatikizika ndi Mzere Wogudubuza wa Precision Copper Flat Waya

GRM's Integrated Drawing and Rolling Line ya Precision Copper Flat Waya ndi njira yopangira mawaya amtundu wa mkuwa yophatikizira kujambula mawaya, kugudubuza mwatsatanetsatane, kuyeza pa intaneti, ndikudzitengera zokha munthawi imodzi mosalekeza. Zopangidwira zopangira ma thiransifoma, kupanga ma conductor a CTC, waya wamakona anayi amtundu wa enameled, ndi kupanga mawaya a EV motor flat, mzerewu umakwaniritsa liwiro mpaka 400 m/min. Dongosolo lophatikizikali limapangitsa kuti magwiridwe antchito azitha bwino komanso amachepetsa kasamalidwe ka zinthu.

Tumizani Kufunsira

Muyezo: 5.0

(Mawerengedwe Owerengera: 1)

Mafotokozedwe Akatundu

Zojambula zophatikizika za GRM ndi mzere wozungulira umaphatikiza kujambula kwa waya, kugudubuza mwatsatanetsatane, kuyeza pa intaneti ndikudzitengera zokha kukhala njira imodzi yopitilira kupanga. Dongosololi lidapangidwa kuti lipange waya wokhazikika kwambiri wamkuwa womwe umagwiritsidwa ntchito mu waya wamagetsi, thiransifoma kondakitala, CTC conductor ndi EV motor application.

Precision copper flat wire produced on GRM integrated drawing and rolling line

GRM Integrated lathyathyathya waya kupanga mzere lakonzedwa mosalekezakukonza waya wamkuwa kukhala makondakitala olondolandi kulolerana okhwima dimensional ndi apamwamba pamwamba khalidwe.

Mwa kuphatikiza njira zojambulira ndi kugubuduza m'njira imodzi yopangira, mzerewu umathandizira kwambiri kupanga bwino ndikuchepetsa kuwongolera pamanja ndikusunga kusasinthika kwazinthu pakanthawi yayitali.

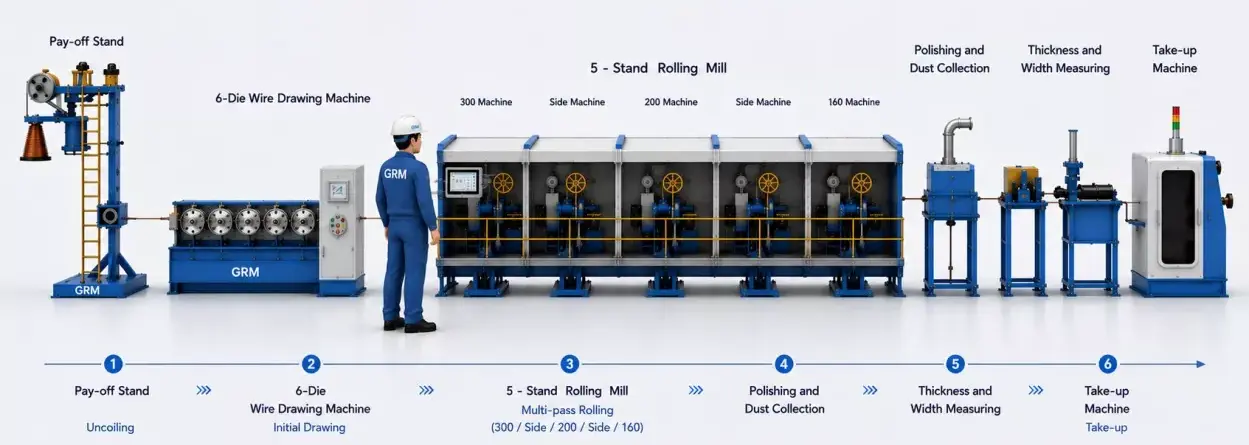

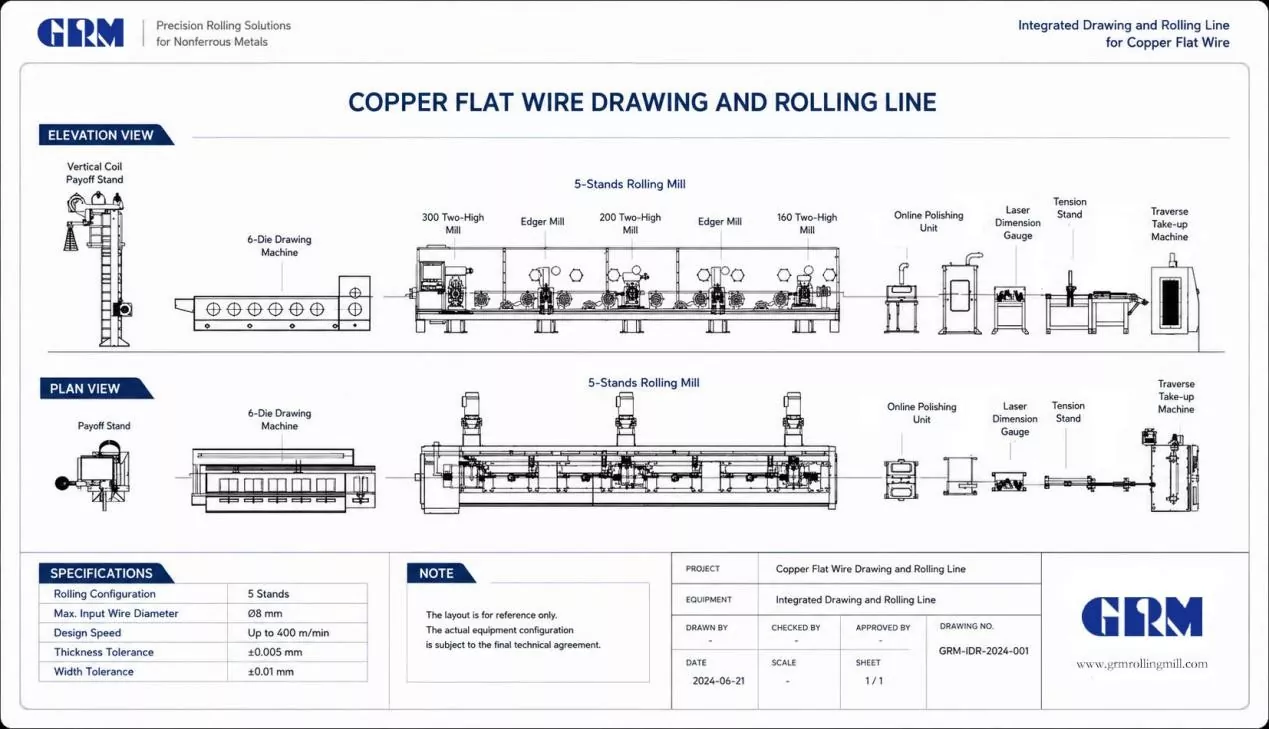

Integrated copper flat wire drawing and rolling line production process

Mapangidwe osinthika komanso ogwira mtima

Poyimirira Coil Payoff Stand: 1 setiiiii

DLF6D/500 Makina Ojambulira asanu ndi limodzi amwalira: 1 setiiiii

Mipukutu iwiri yolondola kwambiri ya Rolling Mill: 3 seti

Side Rolling Mill: 2 seti

Chida Chopukuta ndi Kusonkhanitsa Fumbi Pa intaneti: 1 setiiiii

Chida Choyezera Makulidwe Paintaneti: 1 setiiiii

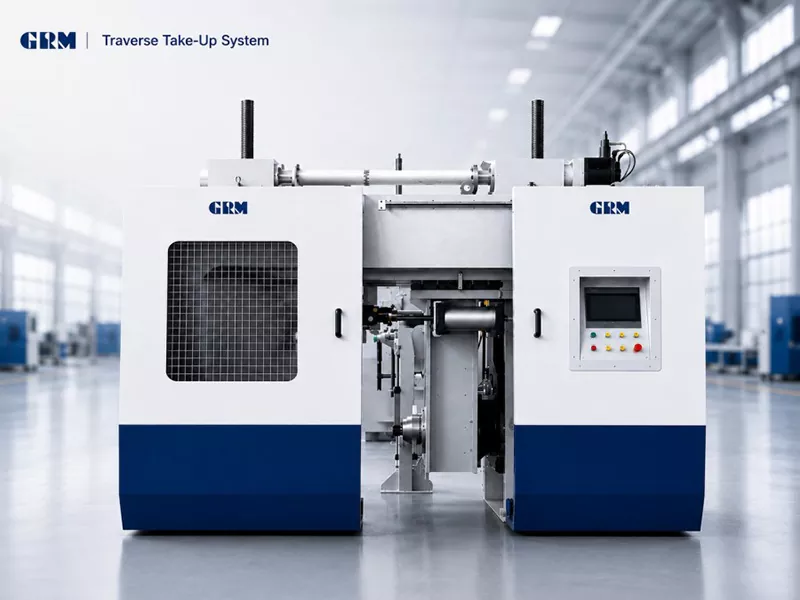

Makina Ogwiritsa Ntchito Transverse: 1 setiiiii

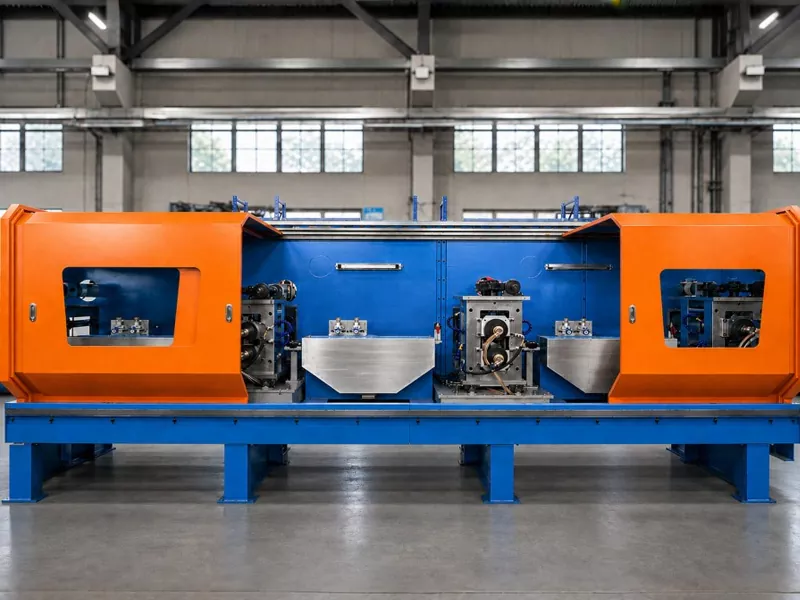

Two-roll precision rolling mill on copper flat wire production line

Side rolling mill for copper flat wire width control

Online thickness and width measuring device for copper flat wire

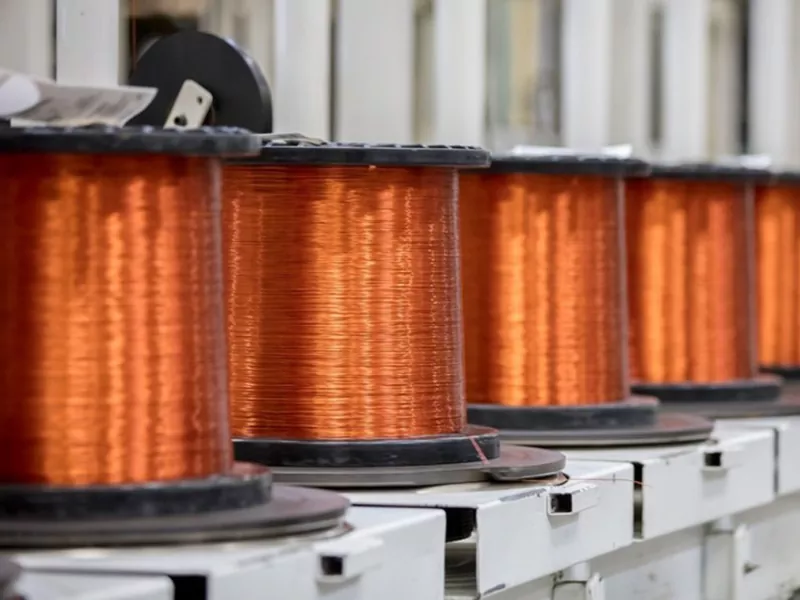

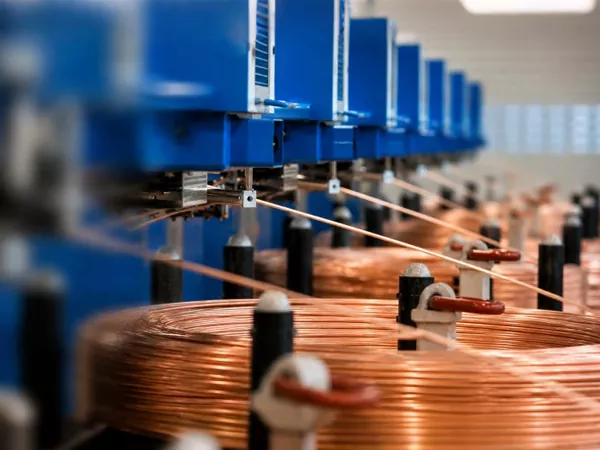

Mzere wathunthu wopanga Copper Wire

The Integrated Drawing and Rolling Line for Precision Copper Flat Wire idapangidwa kuti izifuna kulondola kwambiri pakupanga kokondakita wamagetsi. Ndi liwiro lapamwamba la 400 m / min, ndiloyenera kuti likhale lopangidwa mopitilira muyeso wa waya wamkuwa.

Poyerekeza ndi njira zodzigudubuza zokhazikika, mzere wophatikizika umachotsa kasamalidwe kazinthu zapakatikati ndikuwonetsetsa kusasinthika kwapamwamba pakupanga konse.

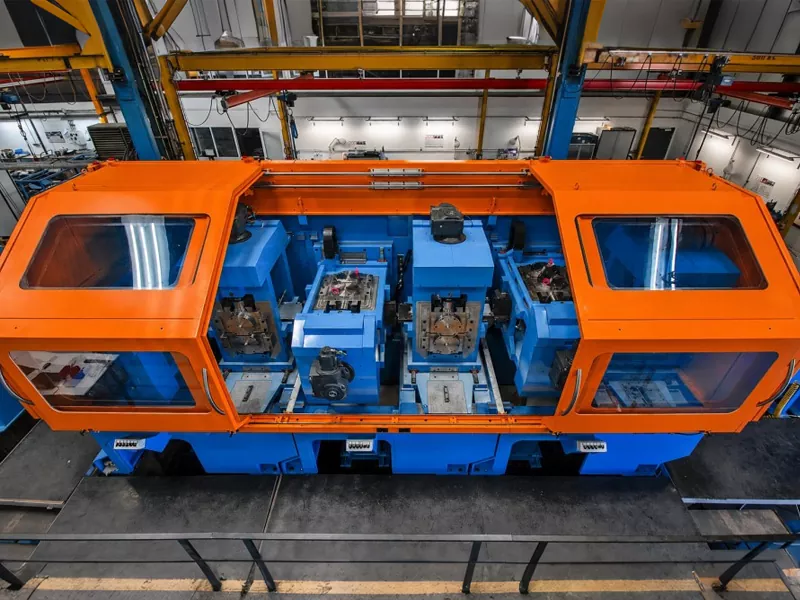

GRM integrated copper flat wire production line with 5-stand rolling mill

* Njira Yopangira Mzere Itha Kusinthidwa Molingana ndi Makulidwe a Makasitomala

MFUNDO ZA NTCHITO

Kusintha 5-kuyima Rolling Mill		Mtengo wa GRM
Choyamba Awiri-mkulu mphero	Ø mm	300
First Edger mil	Ø mm	155
Chigayo chachiwiri chokwera	Ø mm	200
Second Edger mil	Ø mm	155
Chachitatu Chigayo chokwera	Ø mm	160
Kuthamanga Kwambiri	m/mphindi	400
Maximum Intel Wire	Ø mm	8
Anamaliza kulolerana	mm	makulidwe: ± 0.005 m'lifupi: ± 0.01
Mtundu wofananira wa Finished Flat wire size	mm	makulidwe: 2.0-12 m'lifupi: 0.5-4.0

Ntchito Zofananira

Enameled Rectangular Magnet Waya

CTC Woyendetsa Wokhazikika Wokhazikika

EV Motor Hairpin Conductor

EV Motor Flat Wire Production

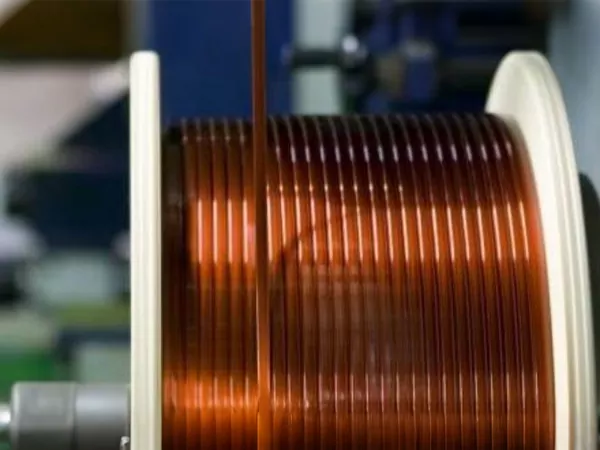

Enameled rectangular magnet wire produced on GRM line

CTC continuously transposed conductor production

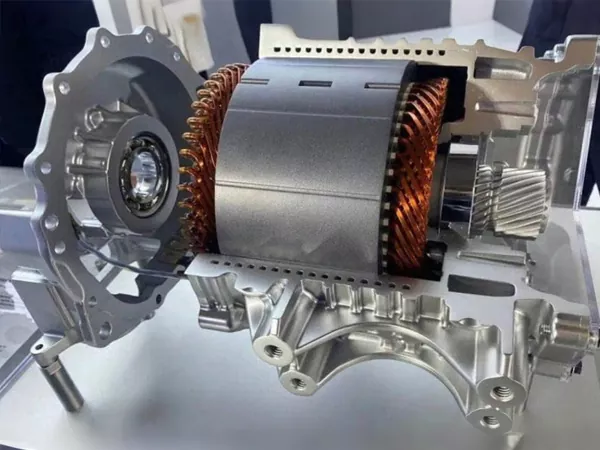

EV motor hairpin conductor flat wire production

FAQ

1. Kodi mzere wopangawu ungathe kupanga waya wamkuwa wamkuwa kuti agwiritse ntchito thiransifoma?

Inde, mzerewu udapangidwa kuti upangitse waya wokhazikika kwambiri wamkuwa wama thiransifoma, waya wa maginito ndi ntchito zina zamagetsi.

2. Kodi Chingwe Chophatikiza Chojambula ndi Kugudubuza cha Precision Copper Flat Waya chingasinthidwe mwamakonda?

Inde, GRM imapereka njira zopangira makonda malinga ndi zomwe mwalowa, kukula kwa waya ndi zofunikira pakupanga.

3. Kodi njira yogubuduza yolondola ingakwaniritse zotani?

Dongosololo limatha kupirira makulidwe mpaka ± 0.005 mm ndi kulolerana m'lifupi mpaka ± 0.01 mm kuti apange waya wokhazikika wamkuwa.

4. Chifukwa chiyani musankhe chojambulira chophatikizika ndikugudubuza m'malo mwa makina osiyana?

Chingwe chophatikizika chamkuwa chopanda waya chimawongolera magwiridwe antchito, chimachepetsa kasamalidwe kazinthu ndikuwonetsetsa kuti zinthu zizikhazikika.
