Makina a Solar PV Ribbon

Solar PV Ribbon & MBB Wire Manufacturing Solutions

GRM imapereka mayankho athunthu opangiraPV interconnect riboni, PV busbar riboni ndi MBB kuzungulira waya kupanga. Zipangizo zathu zamakina zimaphatikiza kugudubuza, kuyika, kuwongolera, kuwongolera pamwamba ndi makina owongolera okha, kuthandizira kupanga ma conductor apamwamba kwambiri amakono a photovoltaic module.

Zopangidwa kuti zikhale zokhazikika, zowongolera zowoneka bwino komanso zodalirika kwanthawi yayitali, mayankho a GRM amathandizira opanga kuti akwaniritse kufunikira kwaukadaulo wapamwamba kwambiri wolumikizana ndi ma solar cell.

Complete Equipment Solutions for Solar Conductors

PV Interconnect Riboni

PV Busbar

MBB Round Waya

Interconnect riboniimasamutsa mphamvu pakati pa ma cell a solar,riboni ya basiamasonkhanitsa ndikupereka zamakono ku bokosi la mphambano, pameneMBB yozungulira wayaimathandizira magwiridwe antchito apamwamba mwa kuchepetsa kutayika kwa shading.

Ma conductor awa amagwira ntchito yofunika kwambiri pakutulutsa mphamvu, kudalirika komanso magwiridwe antchito a nthawi yayitali.

Momwe Ma Conductors a Dzuwa Amapangidwira

GRM imapereka mayankho athunthu opanga ma solar conductor kupanga. Zipangizo za GRM zimagwira ntchito yonse yopangira zinthu kuyambira pakugubuduzika ndikumangirira mpaka kumata ndi kukonza zinthu zamkuwa mpaka kumaliza riboni ya PV ndi waya wa MBB.

Njira yophatikizira yopanga imatsimikizira kulondola kwazithunzi, mtundu wokhazikika wokutira komanso kuchita bwino kwambiri.

Zakuthupi Zamkuwa

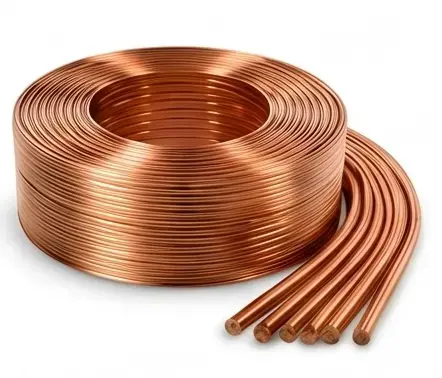

High-chiyero mkuwa ndodo monga zopangira

Ndodo ya Copper

Waya Wamkuwa

→

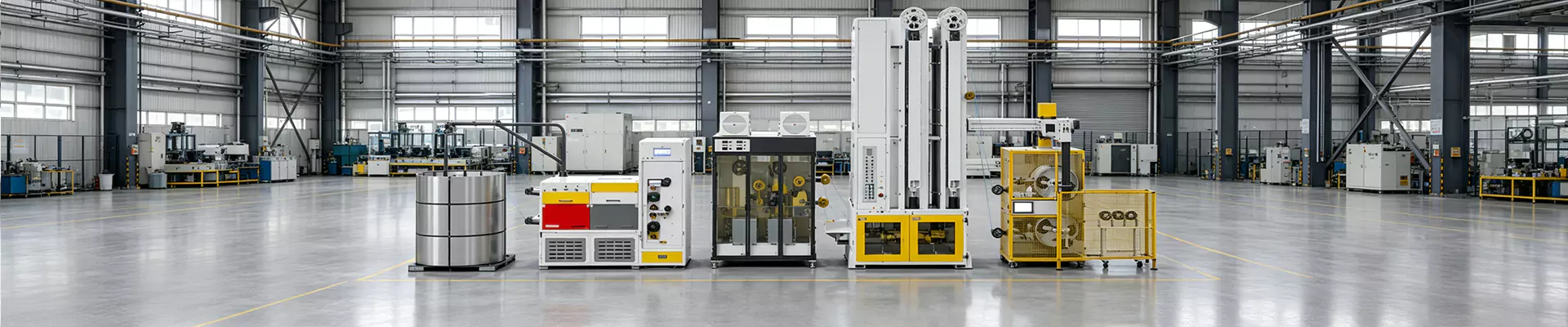

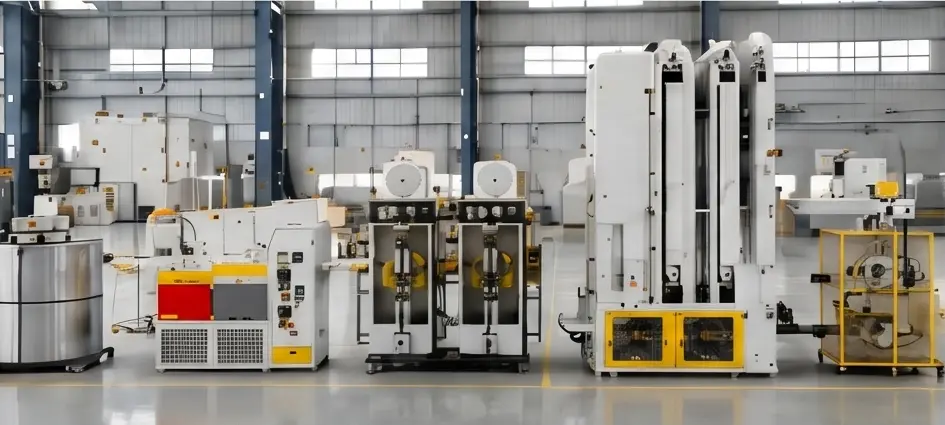

Zida Zopangira GRM

Mzere wathunthu wopanga kuti mupange mwatsatanetsatane, annealing ndi spooling

Kugudubuzika
Chigayo

Annealing
Ng'anjo

Pamwamba
Chithandizo

Spooling
Dongosolo

Zamagetsi
Kulamulira

→

Makonda a Solar

Riboni ya PV yolondola kwambiri komanso waya wozungulira wa MBB

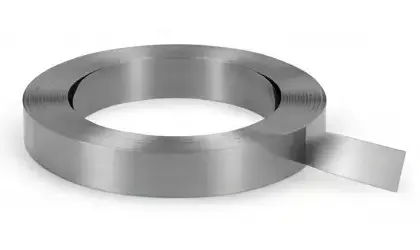

Chithunzi cha PV

(Interconnect Riboni / Busbar Riboni)

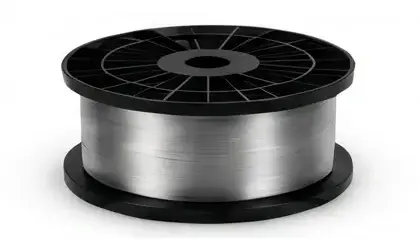

MBB Round Waya

(φ0.20-0.25 mm)

→

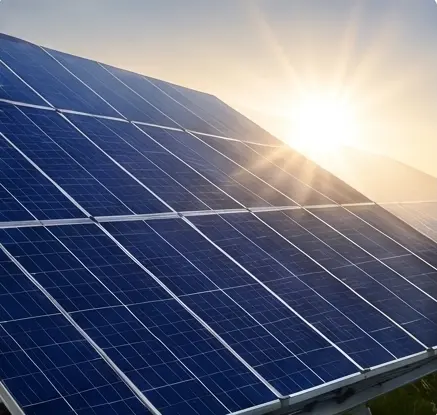

Solar Module

Amagwiritsidwa ntchito mu ma module a solar apamwamba kwambiri

TOPCon
Ma modules

HJT
Ma modules

Kuyerekeza Kwazinthu.

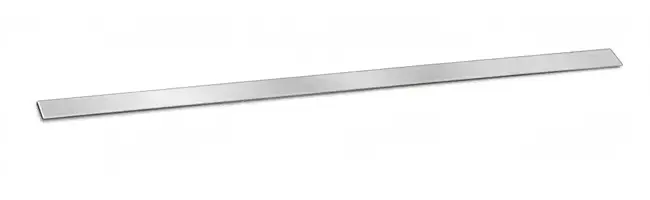

PV Interconnect Riboni

(Kujambula Riboni)

Ntchito

Kulumikizana kwa Ma cell

M'lifupi

0.3 - 1.6 mm

Makulidwe

0.10 - 0.25 mm

Kugwiritsa ntchito

Kulumikiza Ma cell

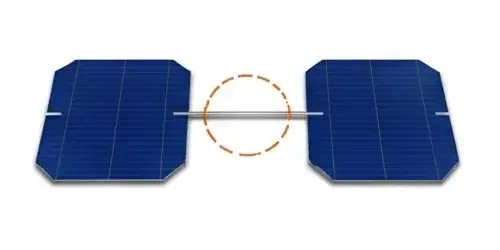

Imalumikiza ma cell oyandikana ndi chingwe cha module.

Ubwino waukulu

Kulumikizana kodalirika kwa ma cell-to-cell okhala ndi solderability kwambiri komanso ma conductivity abwino kwambiri.

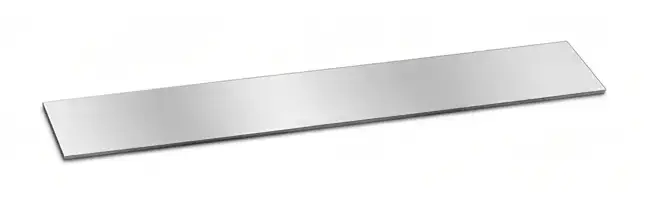

PV Busbar Riboni

(Bus Waya)

Ntchito

Zosonkhanitsa Panopa

M'lifupi

3.0 - 8.0 mm

Makulidwe

0.20 - 0.50 mm

Kugwiritsa ntchito

Zotulutsa za Module

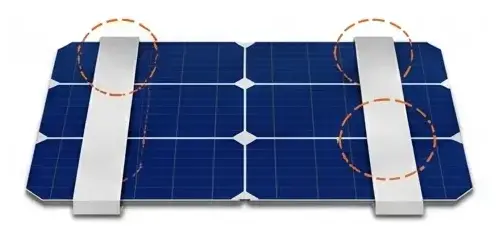

Busbar ribbon current collection diagram

Amasonkhanitsa zamakono kuchokera ku ma cell olumikizidwa ndikusamutsira ku bokosi lolumikizirana.

Ubwino waukulu

Otsika kukana ndi mkulu panopa kunyamula mphamvu pazipita mphamvu linanena bungwe.

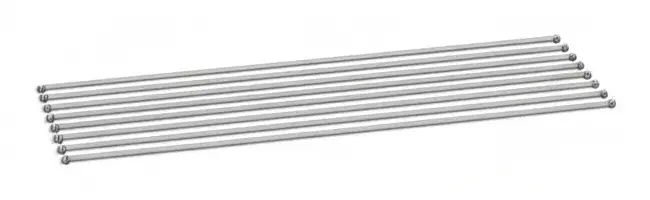

PV MBB Round Waya

Ntchito

Kulumikizana kwa Multi-Busbar

Diameter

φ0.20 - 0.26 mm

Makulidwe

–

Kugwiritsa ntchito

Ma modules Ochita Bwino Kwambiri

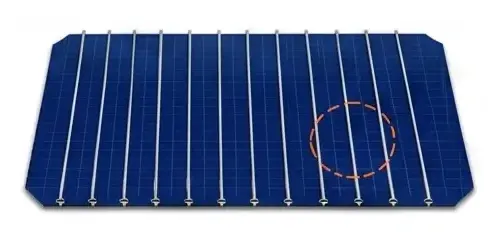

MBB round wire soldering on cell surface

Kugulitsidwa pama cell kuti muchepetse shading ndikuwongolera magwiridwe antchito.

Ubwino waukulu

Kuchepetsa kutayika kwa shading komanso kugwiritsa ntchito bwino kuwala kwa ma module apamwamba.

Mbali	PV Interconnect Riboni (Tabbing Ribbon)	PV Busbar Ribbon (Bus Wire)	PV MBB Round Waya
Ntchito	Kulumikizana kwa Ma cell	Zosonkhanitsa Panopa	Kulumikizana kwa Multi-Busbar
M'lifupi	0.3-1.6 mm	3.0-8.0mm	-
Kunenepa	0.1-0.25mm	0.20-0.50mm	-
Diameter	-	-	φ0.20-0.26mm
Kugwiritsa ntchito	Kulumikiza Ma cell	Kutuluka kwa Module	Ma modules Ochita Bwino Kwambiri

PV riboni ndi waya wa MBB wozungulira amagwiritsidwa ntchito kwambiri popanga ma module a photovoltaic apamwamba kwambiri. Ndi kukhazikitsidwa mwachangu kwa matekinoloje a TOPCon, HJT ndi BC cell, opanga amafuna ma conductor olondola kwambiri, ogulitsidwa bwino komanso magwiridwe antchito amagetsi.

Zida za GRM zimathandizira kupanga ma conductor a solar omwe amagwiritsidwa ntchito mu:

TOPCon Modules

Zithunzi za HJT

Zithunzi za BC

Ma Crystalline Silicon Modules Okhazikika

Utility-Scale Solar Power Systems

Ntchito Zogawa Mphamvu za Solar

Kudaliridwa ndi Atsogoleri Amakampani

Zipangizo za GRM zaperekedwa kwa otsogola a PV riboni ndi opanga ma conductor a solar ku China ndi misika yakunja. Kupyolera muzaka za mgwirizano ndi ogwira nawo ntchito m'makampani, GRM yapeza luso lambiri pakugudubuza ma conductor, annealing, tinning ndi kukonza ndondomeko.

Mayankho athu a makina a solar PV riboni amathandizira opanga opanga ma conductor a ma module a solar apamwamba kwambiri ndikuthandizira makasitomala kukulitsa zokolola, kusasinthika kwazinthu komanso kudalirika kwanthawi yayitali.

Yambitsani Pulojekiti Yanu Yopanga Solar PV

Kaya mukulowa mumakampani opanga ma PV kapena mukukulitsa luso lanu lopanga, GRM imapereka mayankho athunthu a zida, ukatswiri wamachitidwe ndi chithandizo chanthawi yayitali.

Lumikizanani ndi GRMa makondaPV riboni kapena MBB njira yopangira waya.

Chifukwa Chiyani Sankhani GRM?

Imayang'ana pakupereka zida zapamwamba komanso mayankho odalirika a riboni ya PV ndi ma waya a MBB.

20+

Zaka

Zochitika za Precision Kugudubuzika

Ukadaulo wochulukirapo pakugudubuza molondola, zokutira ndi zida zopangira ma conductor.

10+

Ma Patent

Patented Technology

Matekinoloje angapo ovomerezeka a kugudubuza molondola, kuwongolera kupsinjika ndi njira zochizira pamwamba.

100+

Mizere Yoyikidwa

Zolemba zamakampani

Odalirika ndi otsogola a PV riboni ndi opanga ma solar conductor padziko lonse lapansi.

24/7

Othandizira ukadaulo

Servicecycle Service

Thandizo lathunthu kuyambira pakukhazikitsa ndi kutumiza mpaka kukweza ndi kukhathamiritsa.

Mafunso Ofunsidwa Kawirikawiri

1. Kodi riboni ya PV ndi chiyani?

Riboni ya PV ndi kondakitala wamkuwa wathyathyathya wokutidwa ndi solder ndipo amagwiritsidwa ntchito kulumikiza ma cell a solar mkati mwa ma module a photovoltaic.

2. Kodi pali kusiyana kotani pakati pa riboni ya interconnect ndi riboni ya basi?

Interconnect riboni imalumikiza ma cell a solar, pomwe riboni ya basi imasonkhanitsa ndikusamutsa magetsi ku bokosi lolumikizirana.

3.Kodi MBB yozungulira waya ndi chiyani?

Waya wozungulira wa MBB umagwiritsidwa ntchito m'ma module a solar a multi-busbar kuti achepetse kuwonongeka kwa shading ndikuwongolera magwiridwe antchito.

4.Ndi zida ziti zomwe zimafunikira kupanga riboni ya PV?

Mzere wathunthu wopanga riboni wa PV nthawi zambiri umaphatikizapo kugudubuza, kutsekereza, kupukuta, kuwongolera kupsinjika ndi machitidwe owombera.

5.Kodi mzere umodzi wopanga umatulutsa makulidwe osiyanasiyana a riboni?

Inde. Machitidwe a GRM amatha kukhazikitsidwa kuti apange zosinthika komanso kusintha kwachangu kwazinthu.

View as

PV Busbar Ribbon Production Line

GRM PV Busbar Ribbon Production Line adapangidwa kuti azipanga mosalekeza waya wozungulira wa TU1 wopanda okosijeni mu riboni yolondola kwambiri yokhala ndi malata. Mzerewu ndi woyenera kulumikiza riboni ya PV, riboni ya busbar, komanso kupanga riboni ya busbar.
Mzere wathunthu umaphatikiza kujambula mawaya, kugudubuzika mwatsatanetsatane, kutsekereza kosalekeza, chithandizo cha flux, zokutira za malata otentha, ndikudzitengera zokha. Imathandizira opanga riboni ya PV kuwongolera m'lifupi ndi makulidwe ake, mtundu wakutira wa malata, kuwongoka kwa mikwingwirima, komanso kusasinthika kwamapindika.
Mzere wopangira riboni wa GRM busbar ndi pafupifupi 26 m kutalika ndi 3 m mulifupi, ndi kulemera kwa mzere pafupifupi matani 14. Kuthamanga kwapangidwe kumatha kufika 150 m / min, kutengera kukula kwa waya wamkuwa, miyeso yomalizidwa ya riboni, kuthamanga kwa tinning, ndi njira yotengera. Pansi pamikhalidwe yopangira, kutulutsa pamwezi kumatha kufika pafupifupi matani 60-80.

Werengani zambiri Tumizani Kufunsira

Makina Atsopano a Solar PV Round Wire

GRM New Solar PV Round Wire Machine idapangidwa kuti ipange nthiti zolumikizirana, zoyambira zomwe zimagwiritsidwa ntchito m'ma module a PV.
Mzerewu umaphatikiza zojambula zolondola, tining, kuwongolera kukanikiza, ndi kupindika mwanzeru kuti zithandizire kukhazikika kwa riboni, makulidwe opaka yunifolomu, ndi makina osasinthika. Kuthekera kotereku kumathandizira opanga ma PV kupititsa patsogolo kulumikizana kwa ma cell, kudalirika kwa gawo, komanso kusasinthika kwanthawi yayitali.

Werengani zambiri Tumizani Kufunsira

<1 >

Monga opanga Makina a Solar PV Ribbon odalirika komanso ogulitsa ku China, tili ndi fakitale yathu. Ngati mukufuna kugula zinthu zabwino komanso zolimba, chonde titumizireni.
