PV Busbar Ribbon Production Line

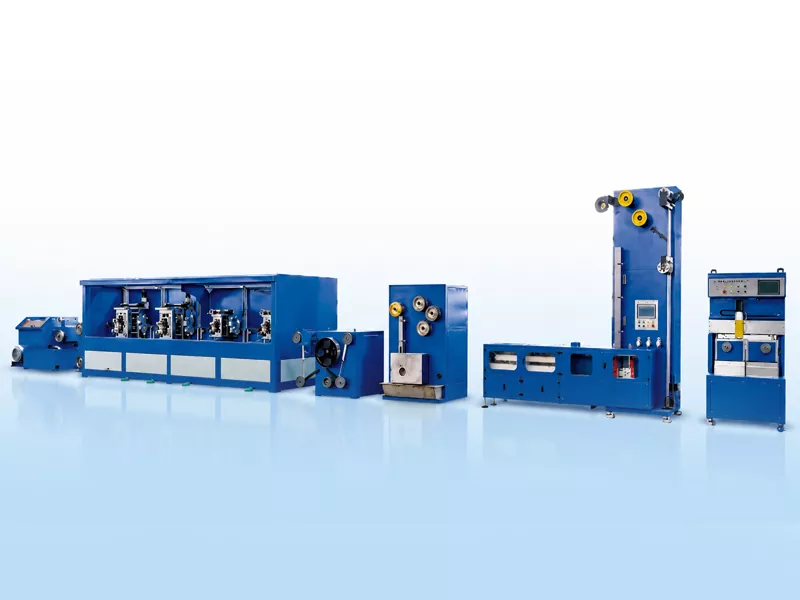

GRM PV Busbar Ribbon Production Line adapangidwa kuti azipanga mosalekeza waya wozungulira wa TU1 wopanda okosijeni mu riboni yolondola kwambiri yokhala ndi malata. Mzerewu ndi woyenera kulumikiza riboni ya PV, riboni ya busbar, komanso kupanga riboni ya busbar.
Mzere wathunthu umaphatikiza kujambula mawaya, kugudubuzika mwatsatanetsatane, kutsekereza kosalekeza, chithandizo cha flux, zokutira za malata otentha, ndikudzitengera zokha. Imathandizira opanga riboni ya PV kuwongolera m'lifupi ndi makulidwe ake, mtundu wakutira wa malata, kuwongoka kwa mikwingwirima, komanso kusasinthika kwamapindika.
Mzere wopangira riboni wa GRM busbar ndi pafupifupi 26 m kutalika ndi 3 m mulifupi, ndi kulemera kwa mzere pafupifupi matani 14. Kuthamanga kwapangidwe kumatha kufika 150 m / min, kutengera kukula kwa waya wamkuwa, miyeso yomalizidwa ya riboni, kuthamanga kwa tinning, ndi njira yotengera. Pansi pamikhalidwe yopangira, kutulutsa pamwezi kumatha kufika pafupifupi matani 60-80.

Tumizani Kufunsira

Mafotokozedwe Akatundu

Kuchokera ku Copper Wire kupita ku Finished Busbar Ribbon

PV Busbar Ribbon Production Line imagwiritsa ntchito waya wamkuwa ngati zopangira. Wayayo amakokedwa koyamba ndi mainchesi ofunikira kuti agubuduze, kenako amapangidwa kukhala riboni yathyathyathya kudzera mumipikisano yoyima molunjika. Pambuyo pakugubuduza, chingwe chamkuwa chimadutsa pakukhazikika kosalekeza kuti asinthe mawonekedwe ake, ndikutsatiridwa ndi chithandizo cha flux ndi zokutira za malata otentha. Potsirizira pake, riboni yomalizidwayo imavulazidwa ndi makina odzitengera okha pa ma spools kapena zopangira zikondamoyo.

Makina Ojambula

Waya wamkuwa amakokedwa ndi kufa mpaka m'mimba mwake 2.6-3.0 mm, okonzeka kugudubuza.

4 Roll Stand

Waya wamkuwa wozungulira amakulungidwa mu riboni yathyathyathya, ndikuwongolera m'lifupi ndi makulidwe olondola.

Annealing

Kuwotchera kwafupipafupi kumagwiritsidwa ntchito ndi chitetezo cha mpweya wa inert komanso kuziziritsa kwamadzi mozungulira kuti apititse patsogolo luso la makina amkuwa.

Kupaka Tin

Chophimba cha malata otentha chimagwiritsidwa ntchito. Mipeni ya mpweya imayang'anira makulidwe a malata, ndipo mafani ozizirira amathandizira kukhazikika kwapamwamba. Makulidwe a malata a mbali imodzi: 0.01-0.025 mm.

Automatic Coil Chang

Ntchito zomwe mungasankhe zikuphatikiza kudutsa kwa servo, kusintha kwa spool, kudula mwaokha, komanso kujambula.

Precision Kutenga

Kuthamanga kwa spool: mpaka 30 kg.

Pancake koyilo yokhotakhota: kusankha 1-2 kg.

R&D ndi Patents

Kuyambira 2015, GRM yapitiliza kupanga zida zopangira PV interconnection riboni ndi riboni ya basi. Kampaniyo yapeza ma patent angapo aukadaulo okhudzana ndi kugubuduza molondola, kuphatikiza mizere yopanga, ndi njira zopangira riboni za PV.

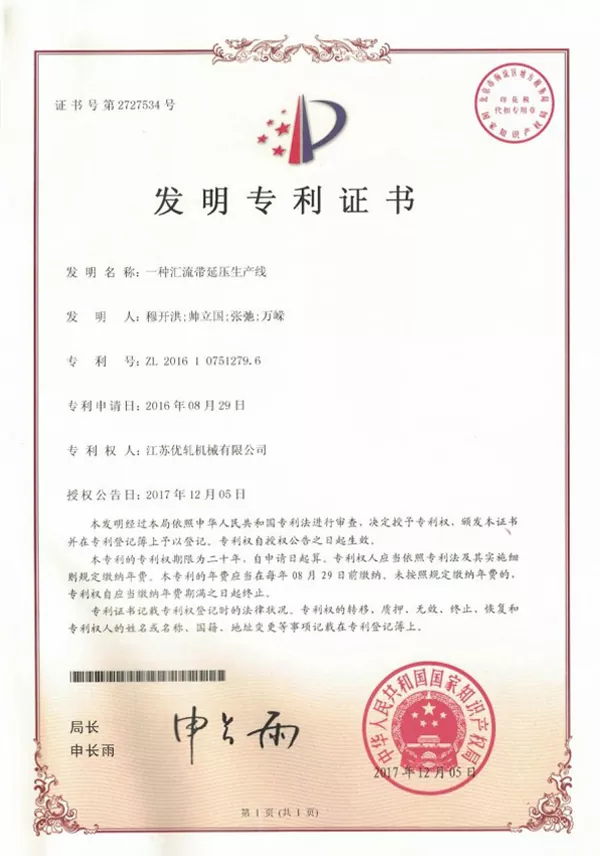

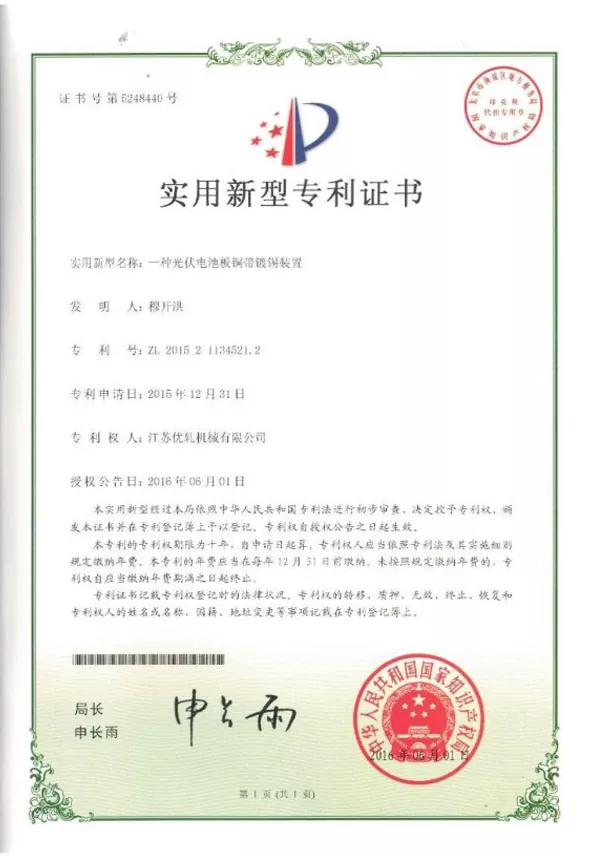

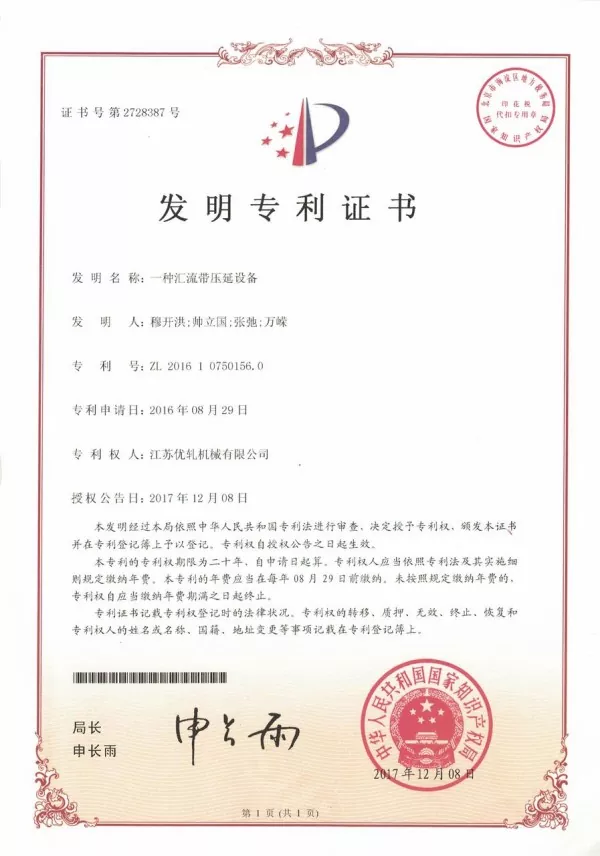

GRM Patented Technologies for PV Ribbon Manufacturing Equipment

Zofunika Kwambiri

Kupanga kosalekeza kuchokera ku waya wa mkuwa mpaka kumaliza kutulutsa kwa riboni ya basbar yokhala ndi malata.
Kupititsa patsogolo kusinthasintha kwa mawonekedwe, kufananira kwa zokutira, komanso mawonekedwe opindika.
Kugwirizana kwazovuta komanso kutengapo gawo kumathandizira kuchepetsa kusokoneza kwa kupanga komanso kuchitapo kanthu pamanja.
Imathandizira riboni wamba wamba komanso kuwunikira kwa riboni yamabasi pazofunikira zosiyanasiyana za PV module.
Amapereka opanga riboni a PV ndi njira yophatikizira yopanga yomwe imayang'ana kwambiri pakuwongolera njira, kusasinthika kwazinthu, komanso kupanga bwino.

Mafunso Ofunsidwa Kawirikawiri

1.Kodi kukula kwazinthu zomalizidwa ndi kotani?

M'lifupi mwake: 3-8 mm.

Makulidwe omaliza: 0.2-0.4 mm.

2.Kodi tolerance and mechanical property ranges ndi chiyani?

M'lifupi kulolerana: ± 0.085 mm.

Makulidwe kulolerana: ± 0.01 mm.

Kulimba kwamphamvu: ≥260 MPa.

Zokolola mphamvu: 90-130 MPa.

3.Ndi njira yanji yokutira malata yomwe imagwiritsidwa ntchito?

Mzerewu umagwiritsa ntchito zokutira za malata otentha, zophimba zonse kuzungulira riboni, kuphatikiza m'mbali zonse ziwiri.

4.Kodi makulidwe a malonda amayezedwa bwanji?

Malo achinayi a mphero zogudubuza zoyima zinayi ali ndi zida ziwiri zoyezera laser, imodzi yoyezera m'lifupi ndi ina yoyezera makulidwe. Deta yoyezera imatha kuwonetsedwa pa HMI.

5.Ndi zipangizo ziti zomwe zingathe kukonzedwa?

PV Busbar Ribbon Production Line idapangidwira kwambiri waya wamkuwa wopanda okosijeni wa TU1. Zosintha mwamakonda zitha kuperekedwa molingana ndi ma aloyi amkuwa osiyanasiyana, miyeso yazinthu, ndi zofunikira zapadera za riboni.
